Name: Straight male A Type Power and signal hybrid board to board connectors Sn plated With forks ROHS
Brand: WCON ELECTRONICS ( GUANGDONG) CO., LTD
SKU: PMS-A-XX-XXX-XXAMX1
Price: Negotiable USD
Availability: InStock

Home Products Board to Board Connector

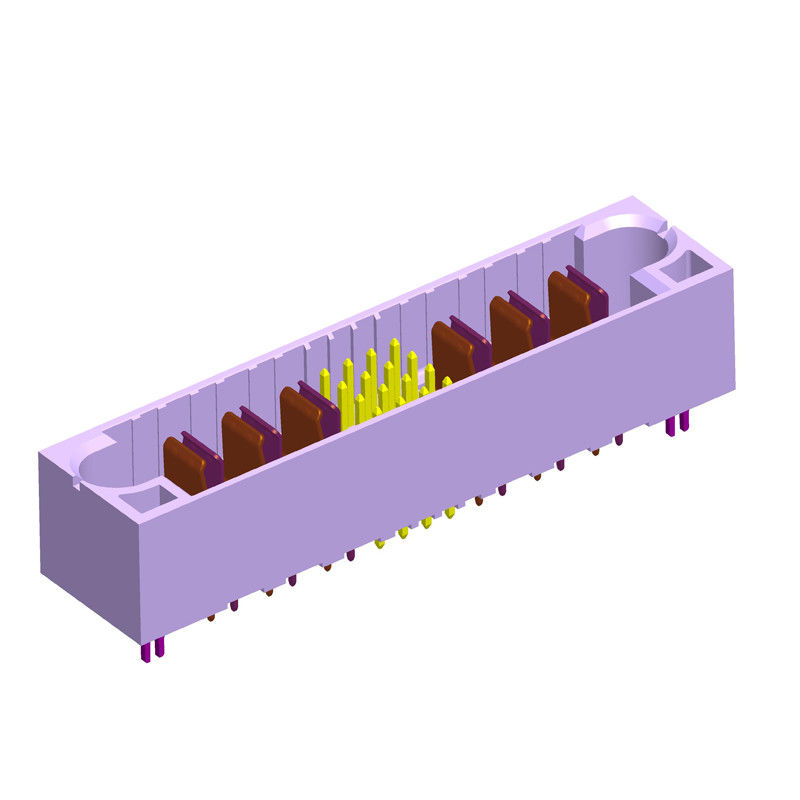

Straight male A Type Power and signal hybrid board to board connectors Sn plated With forks ROHS

Product Details:

Place of Origin:	China
Brand Name:	WCON
Certification:	SGS/ROHS
Model Number:	PMS-A-XX-XXX-XXAMX1

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	negotiation
Packaging Details:	Tray packing
Delivery Time:	15~25Day
Payment Terms:	T/T
Supply Ability:	800000pcs

Contact Now

Detailed Product Description

Insulator Material:	PA9T+G.F,UL94V-0	Rated Current:	Power 30A Signl 2.5A
Insulation Withstand Voltage:	Power 2500VAC/1min Signal 1000VAC/1min	Plasitc:	PA9T
TYPE:	Straight	Port:	Hong Kong
Highlight:	ROHS Board to Board Connectors , ROHS board to board connectors

Power+Signal PSP A Type Straight Male(3+16+3)PA9T BK A=3.43mm Sel.30U"Au/Matte Sn,40/Tray,NW:11.964g.

Insulator Material	PA9T+G.F,UL94V-0
Terminal Material	Copper Alloy
Terminal Plating	Au/Sn Plated Over Nickel
Rated Voltage	50V
Rated Current	Power 30A Signl 2.5A
Contact Resistance	Power 0.7MΩ Max Signal 2010mΩ Max
Insulation Resistance	DC500V PPWER 10000MΩ Min Signal 500MΩ Min
Insulation Withstand Voltage	Power 2500VAC/1min Signal 1000VAC/1min
Durability	200 cycling

Power+Signal PSP A Type straight angel Male
1.PSP mixed power and signal distribution connectors designed to support high power applications, it also has the power and signal contacts, capable of simultaneous power allocation and power control in a connector

2.PSP mixed power and signal distribution connector can provide 1-20 power contacts and 0-148 signal contacts. The rated current capacity of each power supply contact is 48A;

3. power supply contacts and signal contacts can provide two levels of sequential matching, which can support up to three levels of power supply and signal sequence matching.

WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180°DIP Drawing:PMSXX-A-XX-XXX-XXAMX1.pdf

Straight male A Type Power and signal hybrid board to board connectors Sn plated With forks ROHS 1
