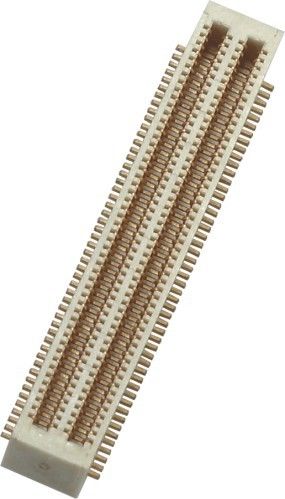

0.5mm 2*50P SMT Board to Board Connector with post Phosphor PA9T Bronze Gold Flash

0.5mm 2*50P SMT Board to Board Connector with post Phosphor PA9T Bronze Gold Flash

  • 0.5mm 2*50P SMT Board to Board Connector with post Phosphor PA9T Bronze Gold Flash
  • 0.5mm 2*50P SMT Board to Board Connector with post Phosphor PA9T Bronze Gold Flash
  • 0.5mm 2*50P SMT Board to Board Connector with post Phosphor PA9T Bronze Gold Flash
  • 0.5mm 2*50P SMT Board to Board Connector with post Phosphor PA9T Bronze Gold Flash
0.5mm 2*50P SMT Board to Board Connector with post Phosphor PA9T Bronze Gold Flash
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/CUL/SGS/ROHS
Model Number: 3620-PXXX-XXXXXR01
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Reel
Delivery Time: 15-25Day
Payment Terms: T/T
Supply Ability: 800000kpcs
Contact Now
Detailed Product Description
Current Rating: 0.5AMP Voltage Rating: 50V AC/DC
Contact Resistance: 50milliohm Max Gender: Male
Plasitc: PA9T Poot: Hong Kong
Pitch: 0.5mm Type: SMT
Highlight:

male straight connector

,

0.8 mm pitch connector

0.5mm 2*50P SMT PA9T 30％GF UL94V-0 Phosphor Bronze Gold Flash Board to Board Connector



Current Rating 0.5AMP
Voltage Rating 50V AC/DC
Contact Resistance 50milliohm Max
Insulation Resistance 100Megohm Min
Operation Temperature ﹣20℃ to +105℃
Housing Material PA9T+30％GF(UL94V-0)
Contact Material Phosphor Bronze
Contact Plating Au Or Sn over Ni



Product Name: 0.5MM Board To Board connector
1. male straight connector characteristics: in the current connector transmission capacity of the strongest; a wide range of use, environmental protection, high temperature resistance, fire prevention, antioxidation, electrical conductivity, precision strong connection.
2. material: UL94V-0, PA9T+30%GF, copper alloy material
3. scope of application: power system, communication network, financial manufacturing, elevator, industrial automation, medical equipment, office equipment, home appliances, military manufacturing industry.



0.5mm 2*50P SMT Board to Board Connector with post Phosphor PA9T Bronze Gold Flash 0



1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30％GF UL94V-0Drawing:Board To Board 3620-SXXX-XXXXXR01.pdf

Tag:

male straight connector,

0.8 mm pitch connector,

right angle board to board connector
