14 Pin 2.54 Mm Female Header Bronze Gold Flash /Sn Michined IC Socket L=7.43mm

14 Pin 2.54 Mm Female Header Bronze Gold Flash /Sn Michined IC Socket L=7.43mm

  • 14 Pin 2.54 Mm Female Header Bronze Gold Flash /Sn Michined IC Socket L=7.43mm
  • 14 Pin 2.54 Mm Female Header Bronze Gold Flash /Sn Michined IC Socket L=7.43mm
  • 14 Pin 2.54 Mm Female Header Bronze Gold Flash /Sn Michined IC Socket L=7.43mm
14 Pin 2.54 Mm Female Header Bronze Gold Flash /Sn Michined IC Socket L=7.43mm
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/CUL/SGS/ROHS
Model Number: 7110-301XXMXX074X1
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Tube
Delivery Time: 15-25Day
Payment Terms: T/T
Supply Ability: 800000kpcs
Contact Now
Detailed Product Description
Current Rating: 1.0AMP Contact Resistance: 10mΩ Max
Dielectric Strength: Min 1000VRMS Port: Hong Kong
Length: L=7.43mm Color: Black
Material: Bonze Pitch: 2.54mm
Highlight:

2.54 mm female header

,

14 pin header connector

,

IC 2.54 mm female header



Product name: 2.54mm IC connector 7110-301XXMXX074X1
1. WCON Connector features: wide range of use, environmental protection, explosion proof, moistureproof
2. WCON Connector material: (UL94V - 0) black PPS + 30% GF
3. The scope of application: applied to all kinds of consumer appliances, electronic newsletter, industrial and power control, medical equipment, automotive electronics, such as solar photovoltaic industry, providing customers with the most sophisticated and reliable connection.

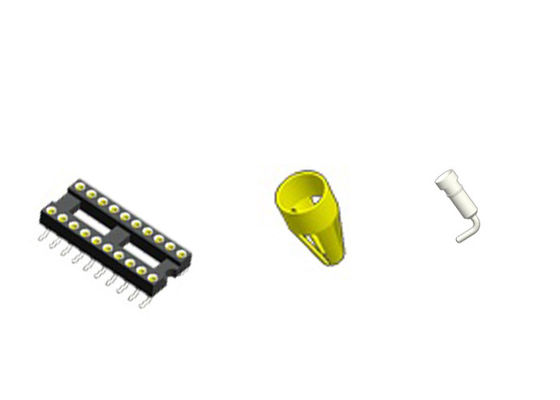

14 Pin 2.54 Mm Female Header Bronze Gold Flash /Sn Michined IC Socket L=7.43mm 0



1.27mm Pcb Female Header / 20 Pin Header Connector 180°DIP PPS 30％GF UL94V-0Drawing: Machined IC Socket 7110-301XXMXX042X1.pdf



2.54mm 14P WCON Connector Bronze Gold Flash / Sn Michined IC Socket Connector

Current Rating 1.0AMP
Contact Resistance 10mΩ Max
Dielectric Strength Min 1000VRMS
Mechanical Life Min 100 cycles
Mating Pin Φ0.40 to Φ0.56mm
Forces polished steel gauga Φ0.43mm
Insertion 200g Max/Pin, Withdrawal:60g Min/Pin
Operation Temperature ﹣40℃ to +105℃
Sleeve Brass CuZn36Pb3(C36000),Sn over Ni
Contact Clip(4 finger) BeCu(C17200),Au Or Sn over Ni
Insulator Material PPS+30%GF(UL94V-0)
06~18P Insulatora without center bar
20~28P

Insulatora with center bar




14 Pin 2.54 Mm Female Header Bronze Gold Flash /Sn Michined IC Socket L=7.43mm 2
