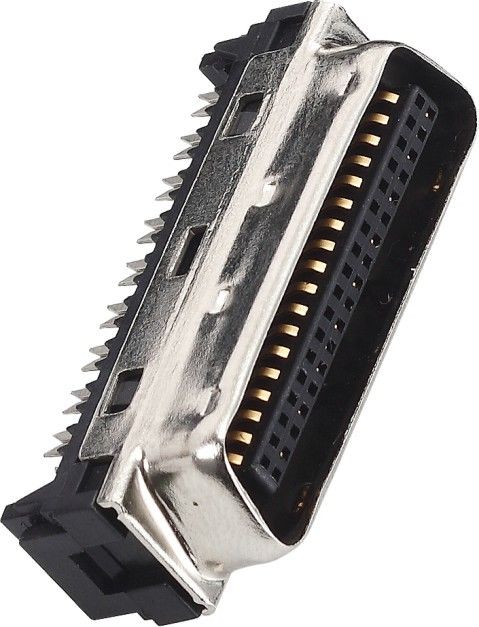

Male Straight SCSI Connector Cen Type Female PA9T IO Interface Connector

Male Straight SCSI Connector Cen Type Female PA9T IO Interface Connector

  • Male Straight SCSI Connector Cen Type Female PA9T IO Interface Connector
  • Male Straight SCSI Connector Cen Type Female PA9T IO Interface Connector
  • Male Straight SCSI Connector Cen Type Female PA9T IO Interface Connector
Male Straight SCSI Connector Cen Type Female PA9T IO Interface Connector
Product Details:
Place of Origin: China
Brand Name: WCON
Certification: UL/CUL/SGS/ROHS
Model Number: 6320-0XXSSXXMNA01
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: Tube
Delivery Time: 15-25Day
Payment Terms: T/T
Supply Ability: 800000kpcs
Contact Now
Detailed Product Description
Application: Automobile, Audio & Video, PCB Gender: Male
Operation Temperature: ﹣55℃ To +105℃ Shell Material: SPCC T=0.50mm
Product Name: IO Interface Connector Plastic Material: PA9T
Highlight:

scsi drive connector

,

scsi interface connector

1.27mm Male Straight SCSI Connector Cen-Type Female PA9T IO interface connector



Rated Current 1AMP
Contact Resistance 35mΩ Max
Withstand Voltage 500V AC/DC
Insulation Resistance 1000mΩ min
Operation Temperature ﹣55℃ to +105℃
Contact Material Phosphor Bronze
Contact Plating Au and Sn Over Ni
Shell Material SPCC t=0.50mm
Housing Material PA9T+30％GF UL94V-0
Cover Material LCP+30％GF UL94V-0



Product Name: SCSI connector
1. features: the use of a wide range of environmental protection voltage resistant fireproof andmoistureproof Antioxidant electrical conductivity and long service life

2. material: (UL94V-0) PBT/LCP black +30%GF

3. scope of application: used for electronic and electrical appliances, electronic communication, medical equipment, automotive electronics, solar photovoltaic, LED, optoelectronics and other industries, with the most sophisticated and reliable connection.





Male Straight SCSI Connector Cen Type Female PA9T IO Interface Connector 0



WCON Pcb Pin Male Header Connector Single Row Header 2.00mm 1*22P 180°DIPDrawing:SCSI 6320-050SSXXMNA01.pdf

Tag:

scsi interface connector,

scsi drive connector,

right angle connector
